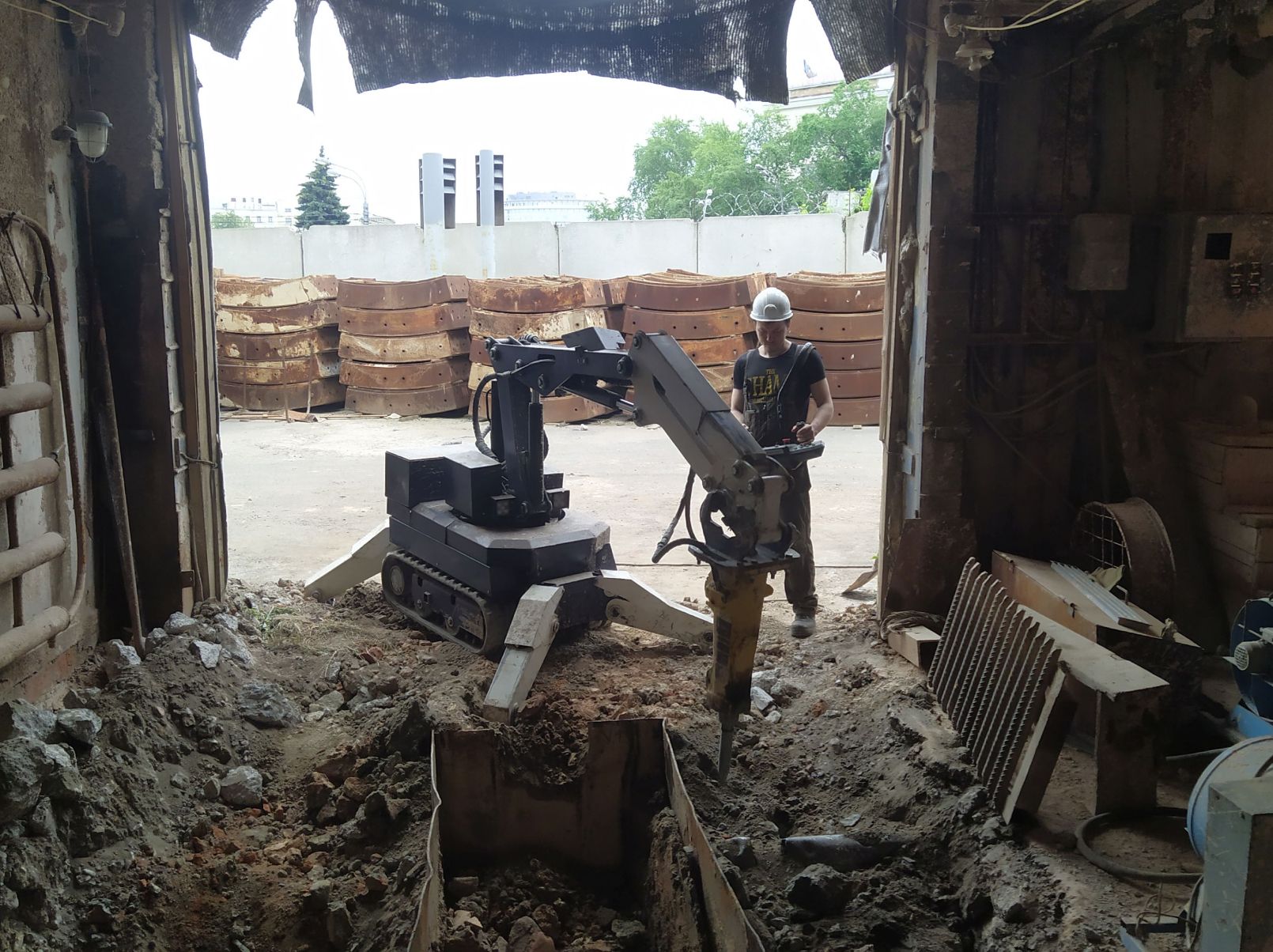

A new standard of delining and wrecking machines for the maintenance of metallurgical plants and mining complexes This machine is remote-controlled, low-noise, extremely precise in operation, designed to work in confined spaces where conventional excavators cannot be used because of their large dimensions. It can be used in various sectors: nuclear industry, mining, underground development, general civil construction, and metallurgy. This machine is a robust carrier for a variety of attachments. It ensures safe operation in confined spaces, including where hazardous factors (high temperatures, dustiness, radiation contamination, etc.) are encountered.1

Unique combinations of power, performance and versatility. Designed for the maintenance of mining complexes and metallurgical factories, ZETKO machines have proven their reputation. These massive, yet stable machines provide a unified one-box solution for a number of tasks at metallurgical factories. Telescopic excavators have proven to withstand heavy shocks and vibrations during steel production servicing. Tracked, wheeled and stationary models are available with both diesel and electric drive, operated from the cab and by remote control panel.

Profit Making Solution for Slag Processing. The Standard mobile jaw crushers are specifically designed for crushing ferrous slag, including steelmaking slags.

Reduction of mill’s downtime is one of the actual tasks, when the relining of mills is processed, and the limited space and the absence of free areas around the equipment make its restoration and retrofitting more complicated. The relining technology depends on the fastening type. The most popular is the bolt fastening to the mill body. One nut is unscrewed, another one is loosened to simplify the dismounting of the coating from each liner. Often, countersink head bolts are cut and removed into the mill by any accessible impact method, hitting the bolts through copper gaskets. Using the pneumatic bolt removing machine saves you time during the dismounting of liners. Compact dimensions and high impact force reduce the time required for bolt removing during relining. Pneumatic air pressure from 4 to 6 bar is sufficient for the machine operation.
Technical parameters / parameters: .table { width: 100%; max-width: 100%; margin-bottom: 1rem; background-color: transparent; } .table td, .table th { padding: .75rem; vertical-align: top; border-top: 1px solid #dee2e6; } Overall dimensions (L,W, H) 1030 х 340 х 580 мм Total weight 190 кг Diameter of the tool 42 мм Capacity не менее 10м³/мин. Internal diameter 20 мм Operating pressure 4 бар - 6 бар Impact energy не менее 1000 дж

Mechanization of the Mill Relining Process with No Personnel Attendance in the Work Area Reducing repair downtime of mill equipment, creating safe working environment for operating personnel and individual approach in choosing the optimum relining method tailored to the required production conditions – these are our main objectives.

<div class="_lightbox row my-5 d-flex justify-content-center">
  <div class="col-sm-4">
    <img сlass="img-fluid" src="/upload/pnevmolot/v-sbore.jpg" alt="molot_pn_1700-v sbore">
  </div>
<div class="col-sm-4">
    <img сlass="img-fluid" src="/upload/pnevmolot/v-sbore-2.jpg" alt="molot_pn_1700-v sbore-2">
  </div>
</div>
<p>Pneumatic hammer (PN) is designed for destruction of rocks, frozen soils, concrete and asphalt pavements, bricks, concrete and reinforced concrete buildings and structures, as well as for soil compaction and installation of light piles, pipes and sheet piles.</p>
<p>It is used in the metallurgical and construction industries./p>
<p><b>Pneumatic hammer characteristics:</b></p>
<style>
.table {
  width: 100%;
  max-width: 100%;
  margin-bottom: 1rem;
  background-color: transparent;
}
.table td, .table th {
  padding: .75rem;
  vertical-align: top;
  border-top: 1px solid #dee2e6;
}
</style>
<table class="table">

<tbody>
  <tr>
    <td >
      <p><b>Parameters</b></p>
    </td>
    <td>
      <p><b>PN-1700M4</b></p>
    </td>
  </tr>
  <tr>
    <td>
      <p>Maximum compressed air pressure, MPa</p>
    </td>
    <td>
      <p>0.7</p>
    </td>
  </tr>
  <tr>
    <td>
      <p>Operating pressure of compressed air, MPa, maximum</p>
    </td>
    <td>
      <p>0.6</p>
    </td>
  </tr>
  <tr>
    <td>
      <p>Single impact energy, J</p>
    </td>
    <td>
      <p>1700</p>
    </td>
  </tr>
  <tr>
    <td>
      <p>Impact frequency, min (-1), minimum</p>
    </td>
    <td>
      <p>396</p>
    </td>
  </tr>
  <tr>
    <td>
      <p>Internal diameter of air hose, mm</p>
    </td>
    <td>
      <p>50</p>
    </td>
  </tr>
  <tr>
    <td>
      <p><b>Pneumatic hammer characteristics:</b></p>
    </td>
    <td>
      <p></p>
    </td>
  </tr>
<tr>
    <td>
      <p>Length, mm (without tool)</p>
    </td>
    <td>
      <p>1700</p>
    </td>
  </tr>
  <tr>
    <td>
      <p>Width, mm (connected)</p>
    </td>
    <td>
      <p>420</p>
    </td>
  </tr>
  <tr>
    <td>
      <p>Weight, kg, without tool/with tool</p>
    </td>
    <td>
      <p>450 / 550</p>
    </td>
  </tr>
  <tr>
    <td>
      <p><b>Adapter plate dimensions</b></p>
    </td>
    <td>
      <p></p>
    </td>
  </tr>
  <tr>
    <td>
      <p>Length</p>
    </td>
    <td>
      <p>2270</p>
    </td>
  </tr>
  <tr>
    <td>
      <p>Width</p>
    </td>
    <td>
      <p>520 </p>
    </td>
  </tr>
  <tr>
    <td>
      <p>Weight, kg </p>
    </td>
    <td>
      <p>400</p>
    </td>
  </tr>

</tbody>
</table>

<p> </p>

Attachments for Maximum Effectiveness of Your Hydraulic Machines Expand your business! Make your excavator a real tool carrier. Hydraulic and mechanical attachments are perfect for a wide variety of applications: construction, road building, demolition, scrap metal processing, etc. The attachment can be mounted on any hydraulic machine and even on mini-excavators and demolition robots

ZetKO, GERMANY Machines was established after buying out ZIMMERMANN-DESIGN CENTRE at GERMANY, which had been operating worldwide for over 25 years. Today Zetko DKV Technik Private Limited, India, together with Zetko Technologies LLC, USA, (formerly ZETKO MACHINENBAU GmbH, Germany) is a manufacturer and supplier of telescopic boom systems for special machines. Three basic models of boom systems are currently available (- WB 4 000, WB 7 000, WB 12 000) which can be modified at the customer’s request. Versatile and robust ZETKO booms featuring 360-degree infinite rotation enable efficient performance of various operations: worn lining removal, skull breaking, tap hole drilling, tap hole installation, shotcreting, converter mouth cleaning, furnace bottom repair, spout repair, bath surface slag removal. Advantages of Zetko telescopic boom systems: high quality simple design reliability and longevity operability in extreme conditions. The telescopic boom systems are mounted on ZETKO machines as well as on the base of wheeled or tracked excavators of any brand (at the customer’s option). Photogallery:

<h3 class="mt-0 pt-0">MATRIX Lining Machine</h3>

<p>The MATRIX tunable unit is designed for ring laying of refractory lining during repair of rotating furnaces of horizontal type with diameter from 3 m to 7.6 m.</p>

<h2>The benefits of a configurable MATRIX installation are:</h2>

<ul>
<li>reliability of equipment tested for years</li>
<li>ease of use</li>
<li>affordable prices</li>
<li>qualified service from the manufacturer</li>
<li>turnkey project execution</li>
<li>contract supervision</li>
</ul>

    <div class="_lightbox row my-0">
        <div class="col-sm-6">
                        <h6 class="my-0 me-3">Download presentation:</h6>
                        <a class="d-flex me-3" href="/upload/matrix/2.5-4M Russian-3.pdf" target="_blank"><i class="_pdf-ico"></i></a>
                 </div>
        </div>


        <h2>Photo gallery:</h2>


    <div class="_lightbox row my-5">
        <div class="col-sm-4">
            <a href="/upload/matrix/matrix_s1.jpg">
                <img src="/upload/matrix/matrix_s1.jpg" alt="">
            </a>
        </div>
        <div class="col-sm-4">
            <a href="/upload/matrix/matrix_s2.jpg">
                <img src="/upload/matrix/matrix_s2.jpg" alt="">
            </a>
        </div>
        <div class="col-sm-4">
            <a href="/upload/matrix/matrix_s3.jpg">
                <img src="/upload/matrix/matrix_s3.jpg" alt="">
            </a>
        </div>


        <div class="col-sm-4">
            <a href="/upload/matrix/i1.jpg">
                <img src="/upload/matrix/i1.jpg" alt="">
            </a>
        </div>
        <div class="col-sm-4">
            <a href="/upload/matrix/i2.jpg">
                <img src="/upload/matrix/i2.jpg" alt="">
            </a>
        </div>
        <div class="col-sm-4">
            <a href="/upload/matrix/i3.jpg">
                <img src="/upload/matrix/i3.jpg" alt="">
            </a>
        </div>

        <div class="col-sm-4">
            <a href="/upload/matrix/i4.jpg">
                <img src="/upload/matrix/i4.jpg" alt="">
            </a>
        </div>
        <div class="col-sm-4">
            <a href="/upload/matrix/i5.jpg">
                <img src="/upload/matrix/i5.jpg" alt="">
            </a>
        </div>
        <div class="col-sm-4">
            <a href="/upload/matrix/i6.jpg">
                <img src="/upload/matrix/i6.jpg" alt="">
            </a>
        </div>


        <div class="col-sm-4">
            <a href="/upload/matrix/i7.jpg">
                <img src="/upload/matrix/i7.jpg" alt="">
            </a>
        </div>
        <div class="col-sm-4">
            <a href="/upload/matrix/i8.jpg">
                <img src="/upload/matrix/i8.jpg" alt="">
            </a>
        </div>
        <!--<div class="col-sm-4">
            <a href="/upload/matrix/i9.jpg">
                <img src="/upload/matrix/i9.jpg" alt="">
            </a>
        </div>-->

    </div>

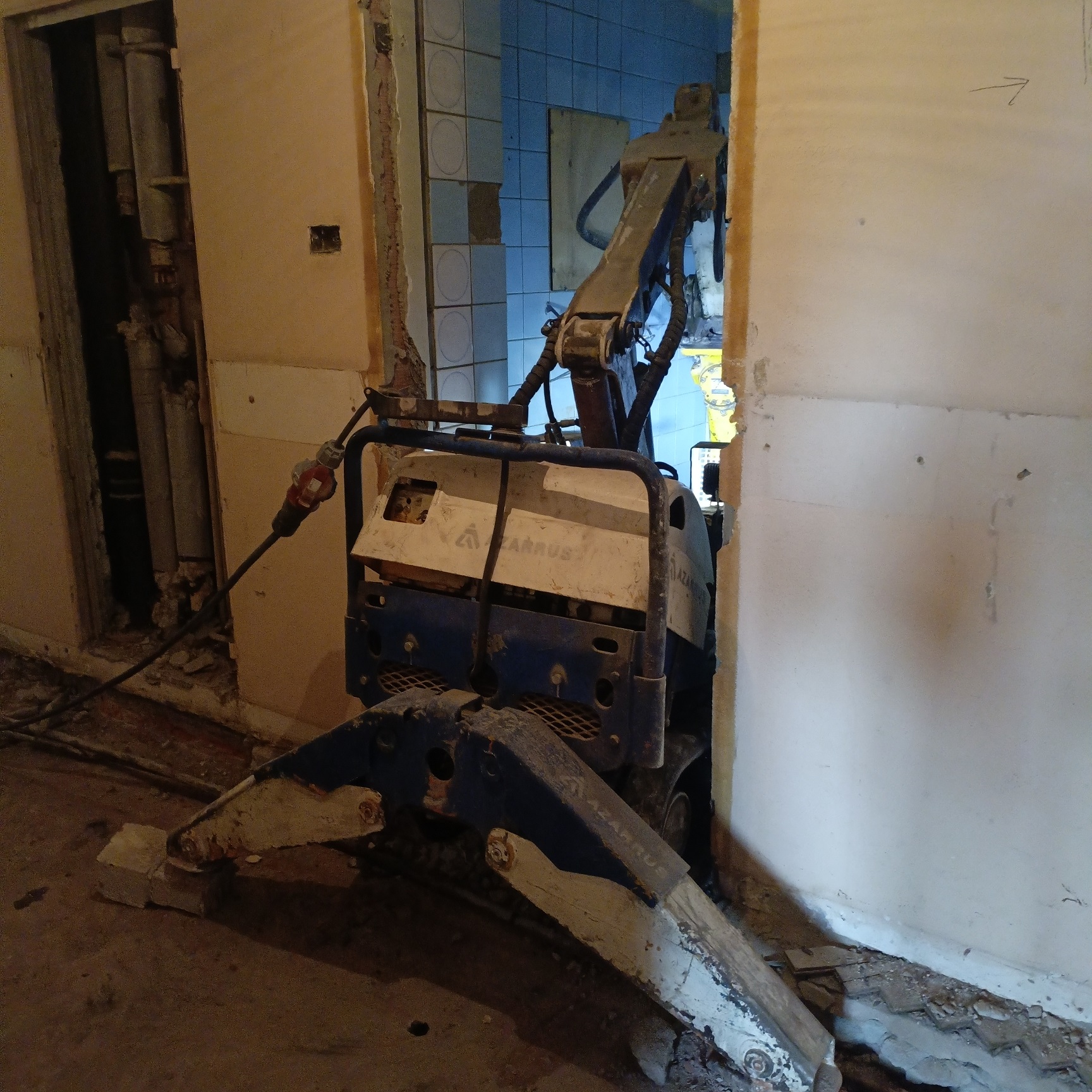

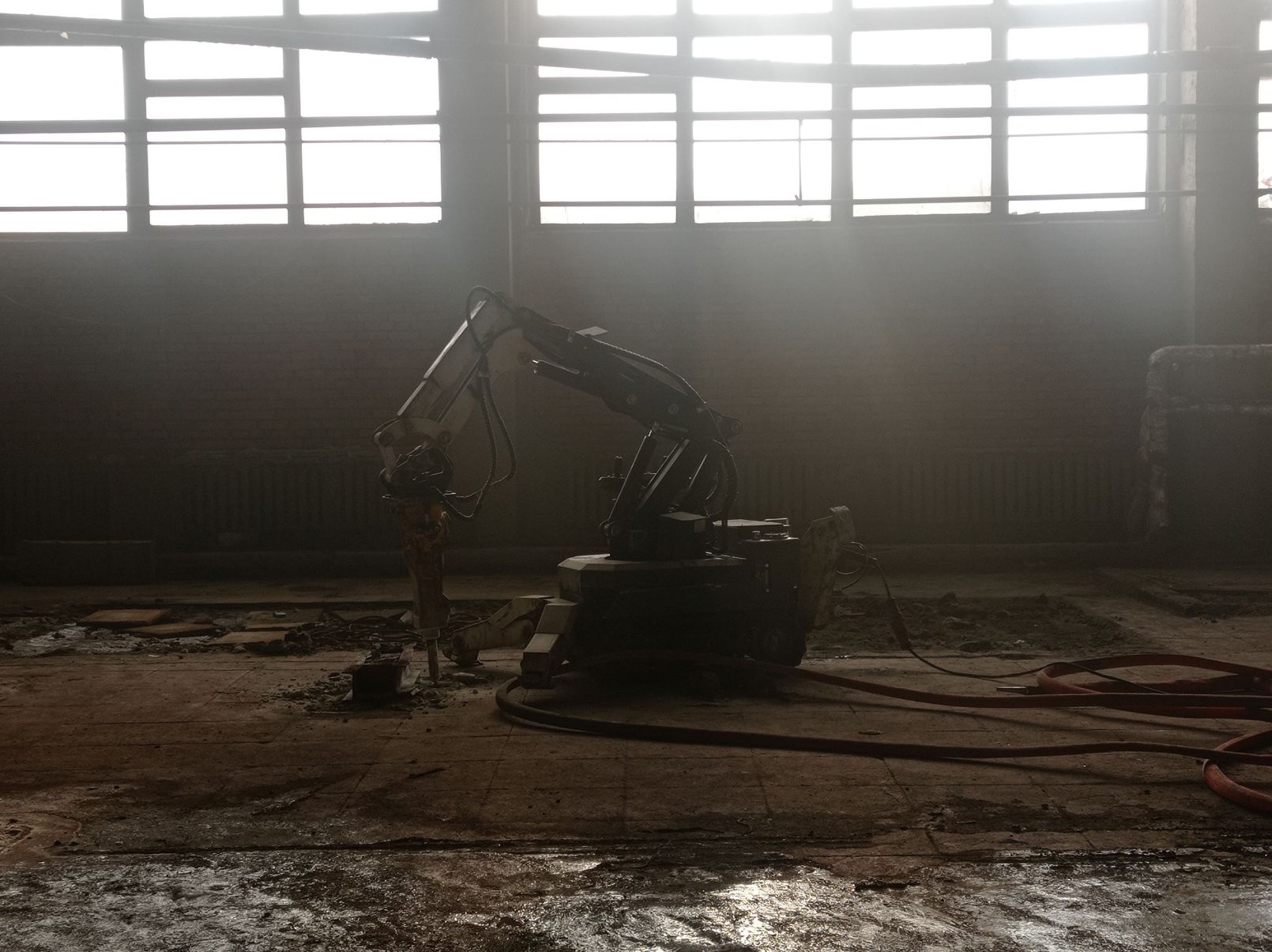

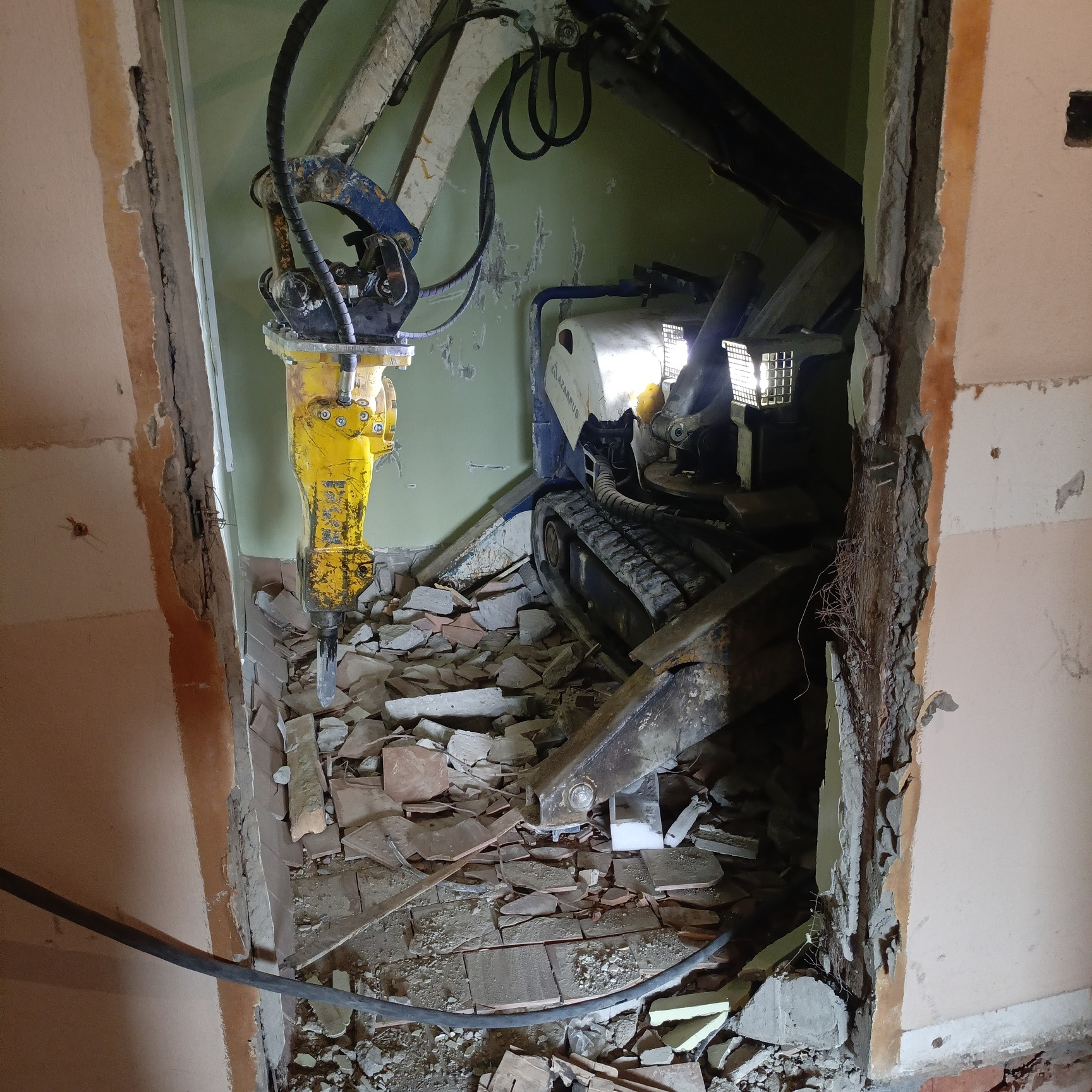

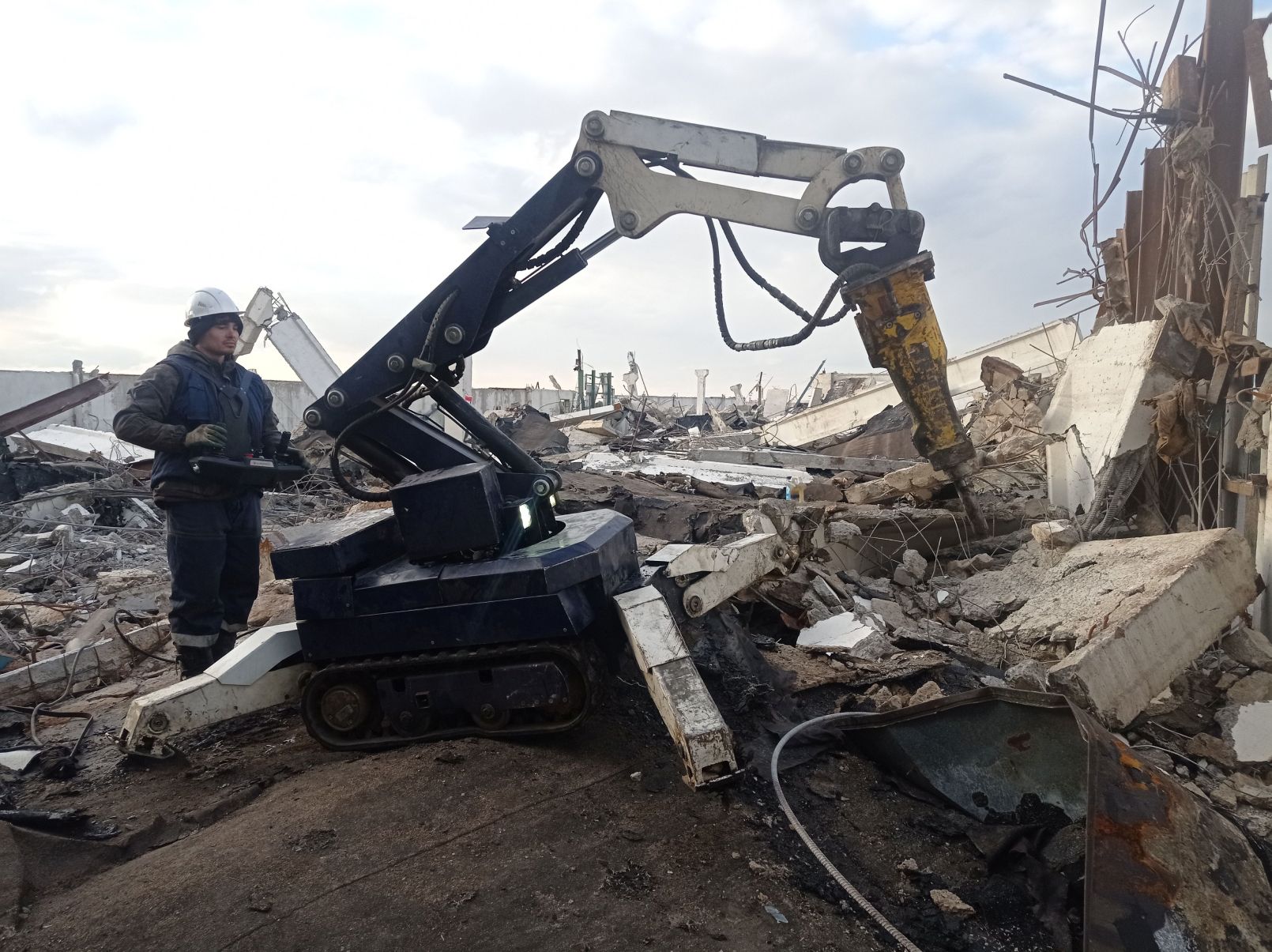

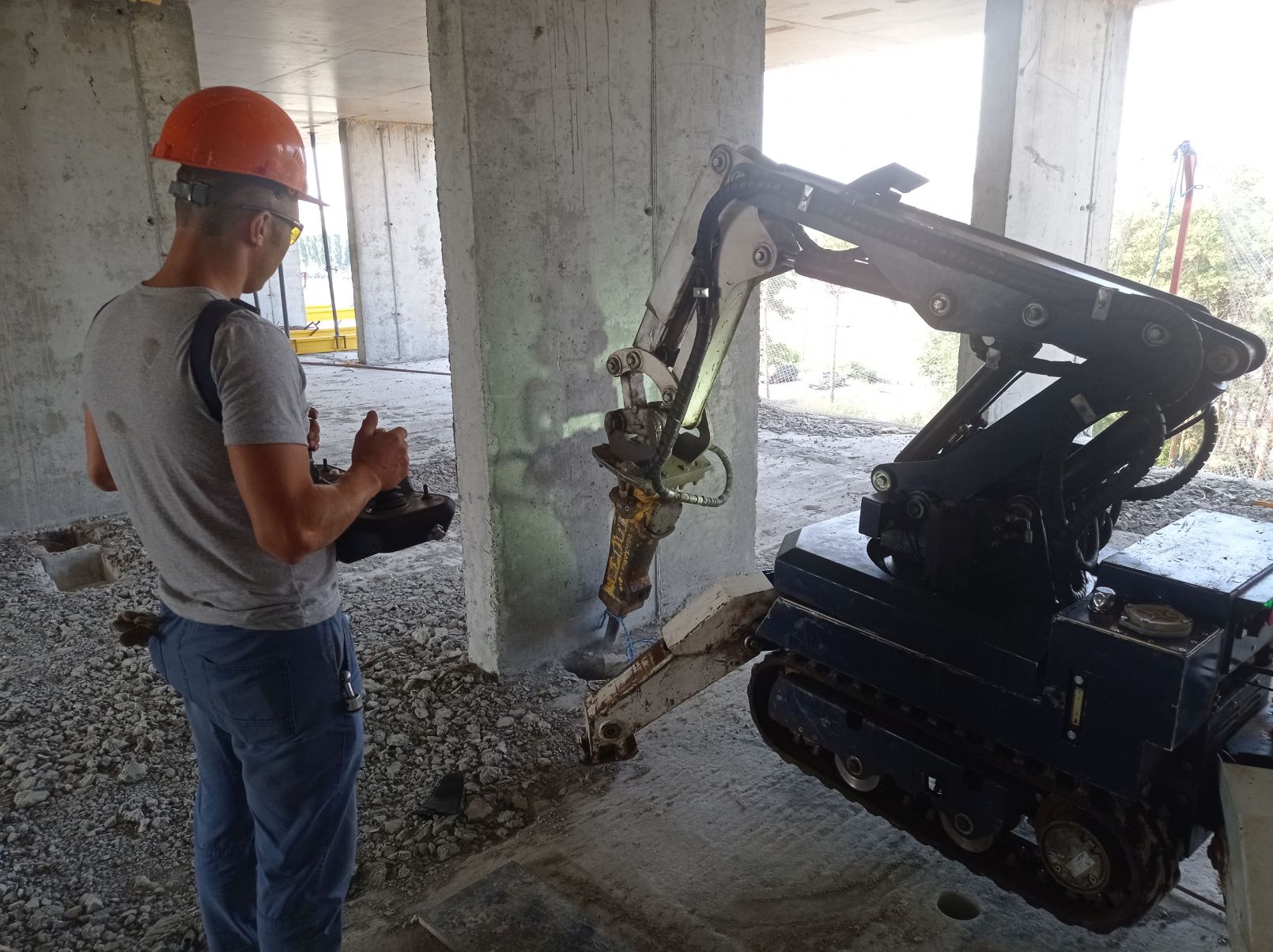

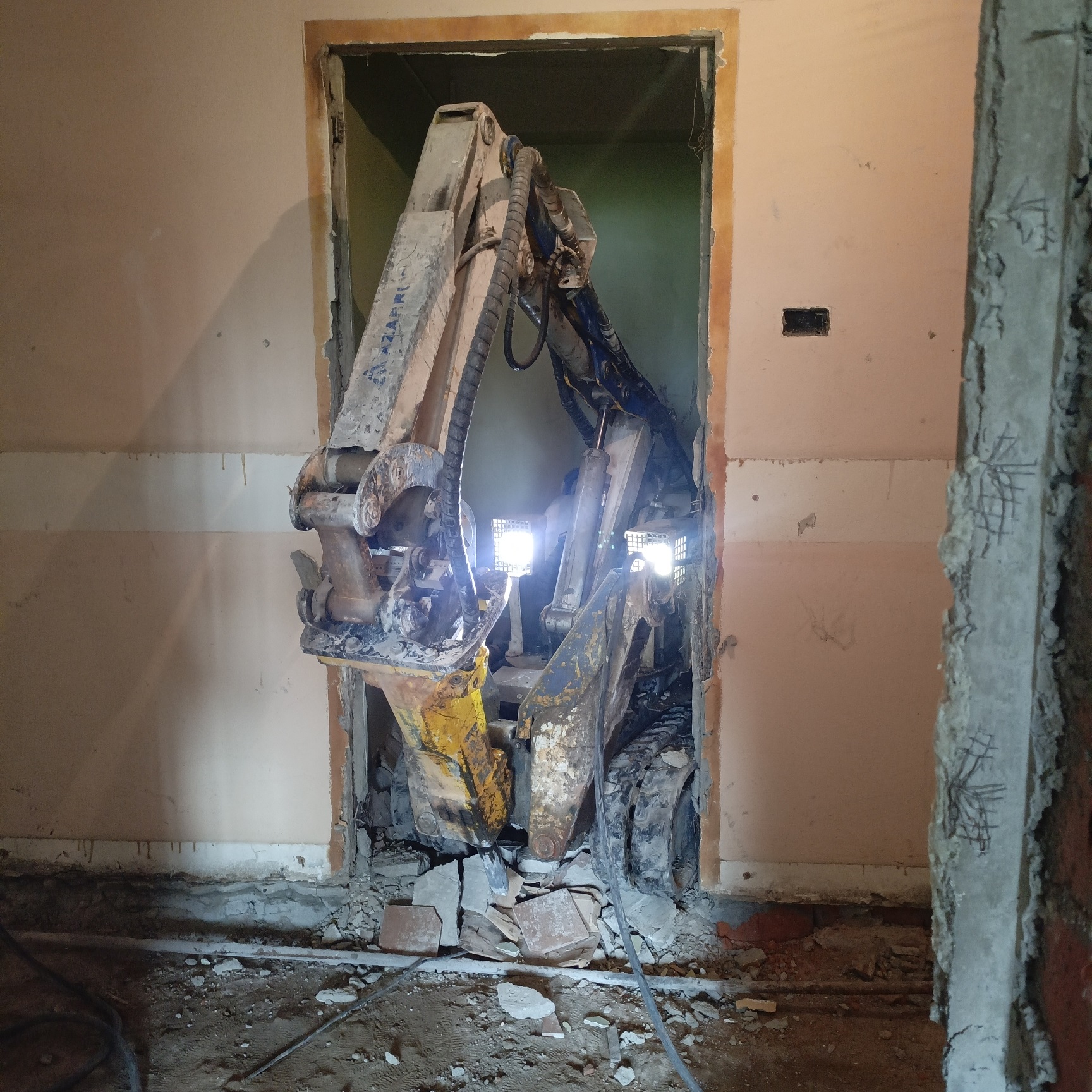

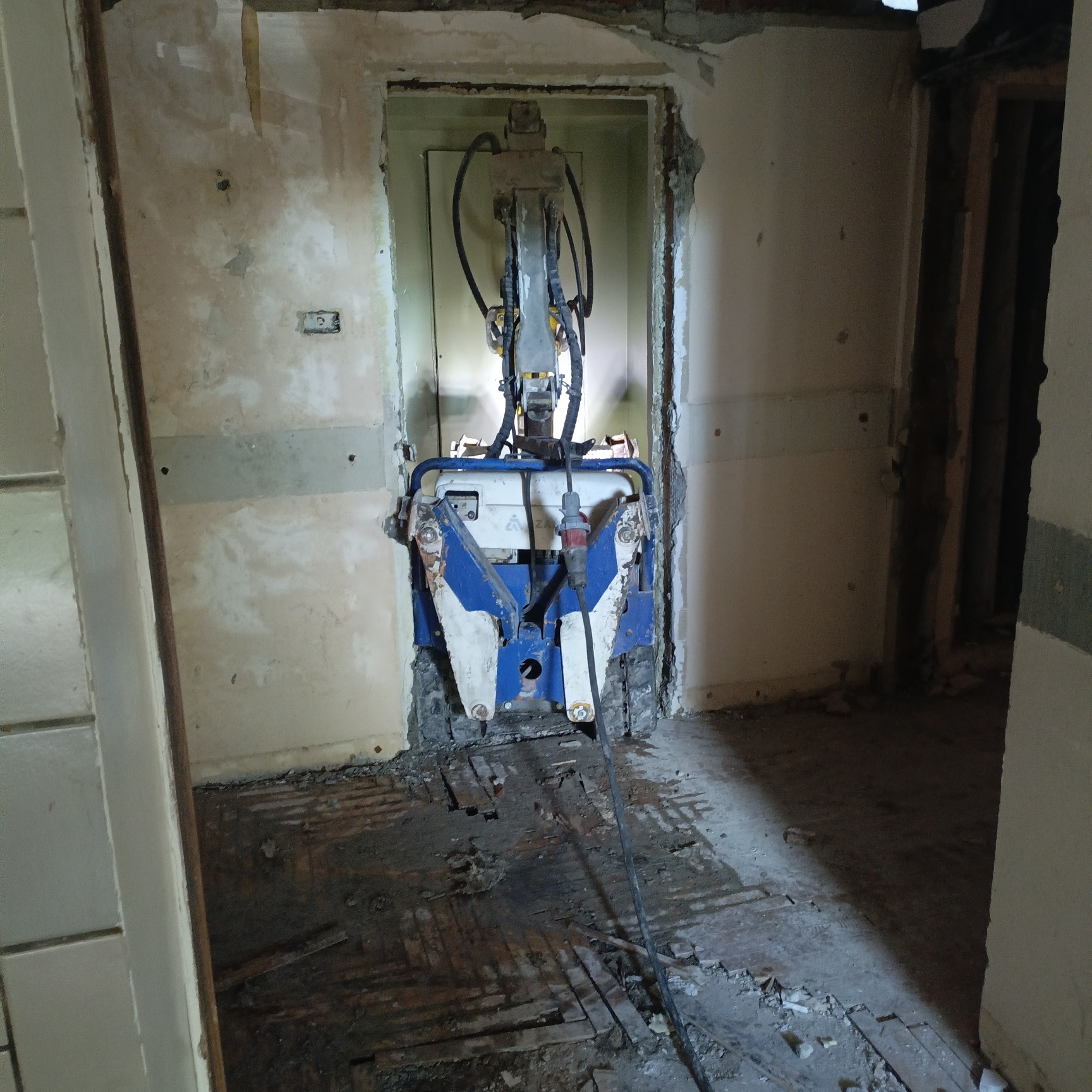

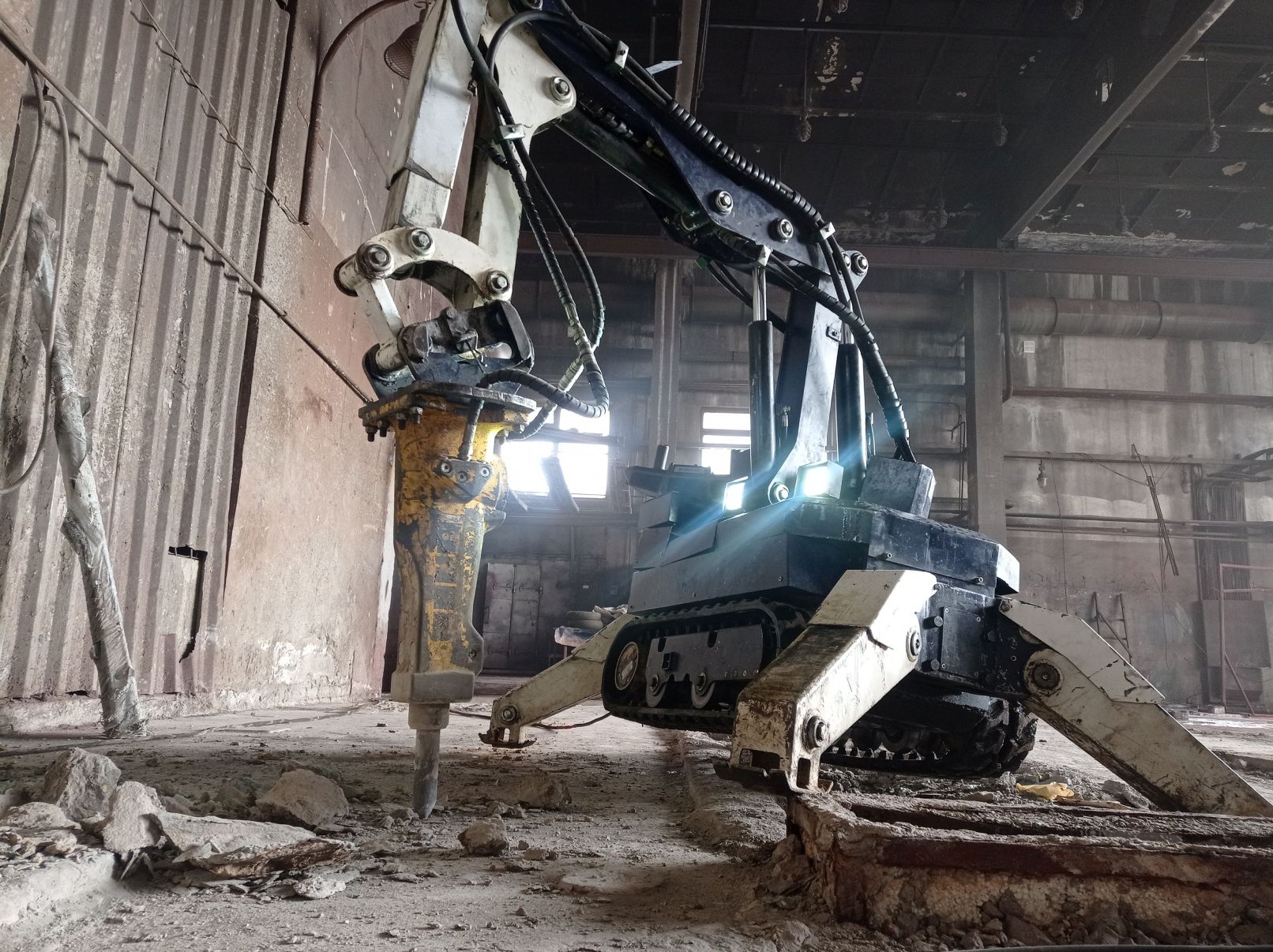

We offer services for demolition, breakage, disassembly and removal of facilities of any complexity. We apply an individual approach to each site where demolition works are performed. Managers of our company will advise you on the equipment to best suit your application needs. We use modern and unique methods for demolition of buildings and structures, so we can carry out demolition works at affordable prices.
Safety, effectiveness and professionalism are our priorities.
